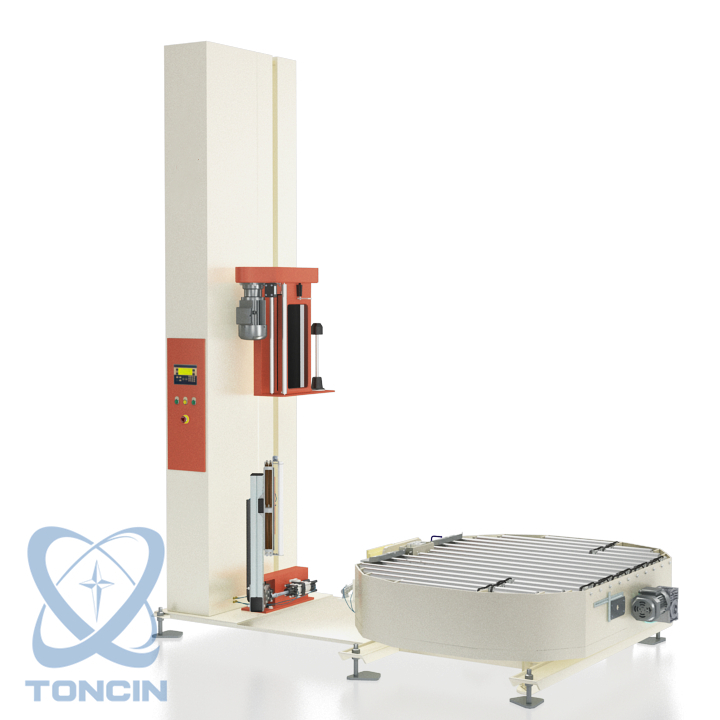

DT2000FZ-H
TONCIN
DT series online wrapper is applied on flow line wrapping, widely used automated production line, improve wrapping efficiency ,labor cost saving .at present, this kind of products have been widely used in chemical industry,electronics,food and beverage ,paper making and other industries.
DT2000FZ-H, compact structure. Advanced slewing bearing device, the bearing effect is better, the service life is longer. Convenient clearance and maintenance. The unique film clamping device ensure better wrapping effect. More durable. The wrapped goods are good for transportation, avoid the spoilage of goods during storage.
Product's parameter:
Model | DT2000FZ-L, DT2000FZ-H, DT2000FZ-HCS |
Wrapping size | (800-1400)*(800-1200)mm |
Wrapping efficiency | 30-50pallets per hour |
Turntable speed | 0-15rpm, adjustable |
Turntable size | Diameter: 2000mm, height:500mm, roller conveyor |
Turntable load | 2000kg |
Film carriage | Stretch ratio 350%, adjustable |
Top platen | optional |
Control system | PLC |
Pneumatic system | 0.6-0.8Mpa, 250NL/min |
Weight | 900kg |
Dimension | 2820mm*1800mm*(2600-3200)mm |
Power | 3kw, 380V 50HZ |
Product's detail:
1.Variable wrapping force system
protect the corner of the loads ,avoid the corner concave.
350% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine .
Maximum up to 350% pre-stretch rate.
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film.
3.Electric top platen(optional)
Automatically sense cargo height
It guarantee the goods stability.
It is safe with production and assembly line work, meanwhile the goods are in uniform.
4.Slewing Bearing Turntable
5.Lifting column
Double chain structure,
adjustable lifting speed frequency conversion
6. Operational panel
Siemens PLC control,
Frequency conversion speed regulation,
Touch screen operation or remote control
